Biegen von Kunststoffplatten | Maschinen von Reichel GmbH

Kunststoff-Biegemaschine

Kunststoff-Biegemaschine für das lineare, berührungsloses Erwärmen von Kunststoffplatten zum manuellen Biegen.

Options:

-Material thickness: 1mm-10mm / 2mm-20mm / 3mm-30mm
-Heating zone width in mm: 5 - 40 / 5 - 75 / 15 - 80 / 20 - 120
-Working length: up to 3100mm
-Materials: thermoplastics such as acrylic glass / plexiglass, polycarbonate, styrene, PETG, polystyrene , PVC etc

Details

Biegemaschine für dicke Kunststoffplatten, Acryl, PMMA, Plexiglas, Polycabonat

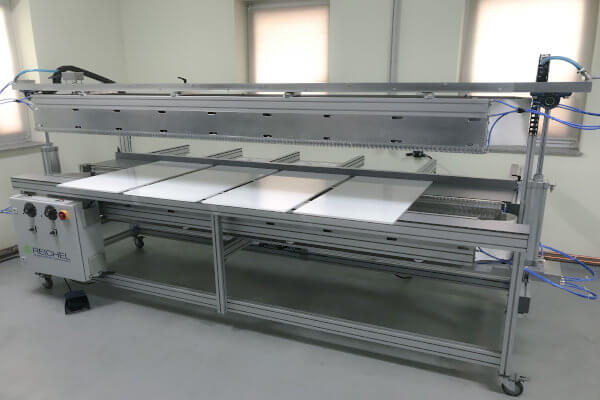

Wide area bending machine

With our plastic bending machine for wide areas, large radii and thick plates are no longer a problem.

-Material thickness: 3mm to 50mm
-Heating zone width: 80mm bis 300mm
-Working length: up to 2200mm
-Voltage: 400V

Details

Abkühltisch zum Biegen von Kunststoffplatten z.b. PMMA, Polycarbonat

Angle cooling table

Professional cooling of plastic plates with continuously adjustable angles.

Angle adjustment: 0 ° to 130 °

Length variants of the angle side: 1100mm, 2100mm, 3100mm

Analog or digital angle display

Details

Angle cooling device

Our cost-effective alternative for professional cooling at a preset angle

Angle: 0 ° to 135 °
Length: 1000mm
Single table length: 500mm

Details
